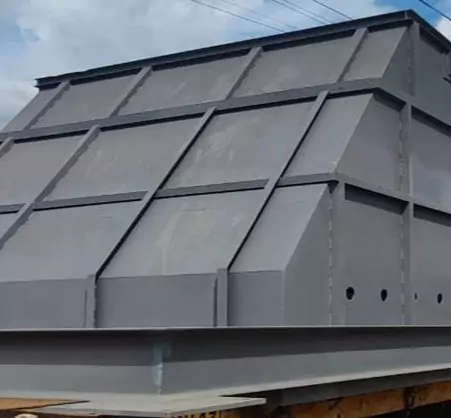

The Parallel Plate Clarifier shown above is a high-performance solid-liquid separation unit designed for efficient sedimentation in water and wastewater treatment systems. Its distinctive design features a robust, inclined structure fabricated from heavy-duty steel plates, engineered for durability and long service life in demanding industrial environments. designed to optimize material handling and transportation processes across various industries. With a focus on durability, precision, and efficiency, our moving floor systems are engineered to streamline operations and enhance productivity in industrial and commercial settings.
Design and Construction:
- Inclined Plate Geometry The angled walls indicate integrated lamella-style settling zones, which greatly increase the effective surface area for sedimentation.
- Heavy-Duty Build: The all-welded steel construction with reinforced paneling ensures structural integrity and minimal flex under flow pressure.
- Integrated Sludge Collection Zone: EThe base area is designed to collect settled solids, allowing for efficient removal and reduced downtime.
- Side Inlet/Outlet Ports: As seen in the image, strategically placed perforations allow uniform distribution of influent and collection of treated effluent.
Key Functional Advantages:
Dynamic Trans-System offers advanced fabrication capabilities for moving floors:The inclined plate design provides a large settling surface in a compact vertical footprint.
Suspended solids settle on the plates and slide down into the hopper zone, enhancing removal rates.
Accelerated sedimentation allows for faster throughput compared to traditional clarifiers.
With minimal moving parts and a self-cleaning settling path, maintenance is infrequent and straightforward.
Applications:
- 1. Steel and power plants
- 2. Food processing and beverage industries
- 3. Municipal sewage and water treatment
- 4. Mining and chemical processing
- 5. Industrial effluent treatment plants
